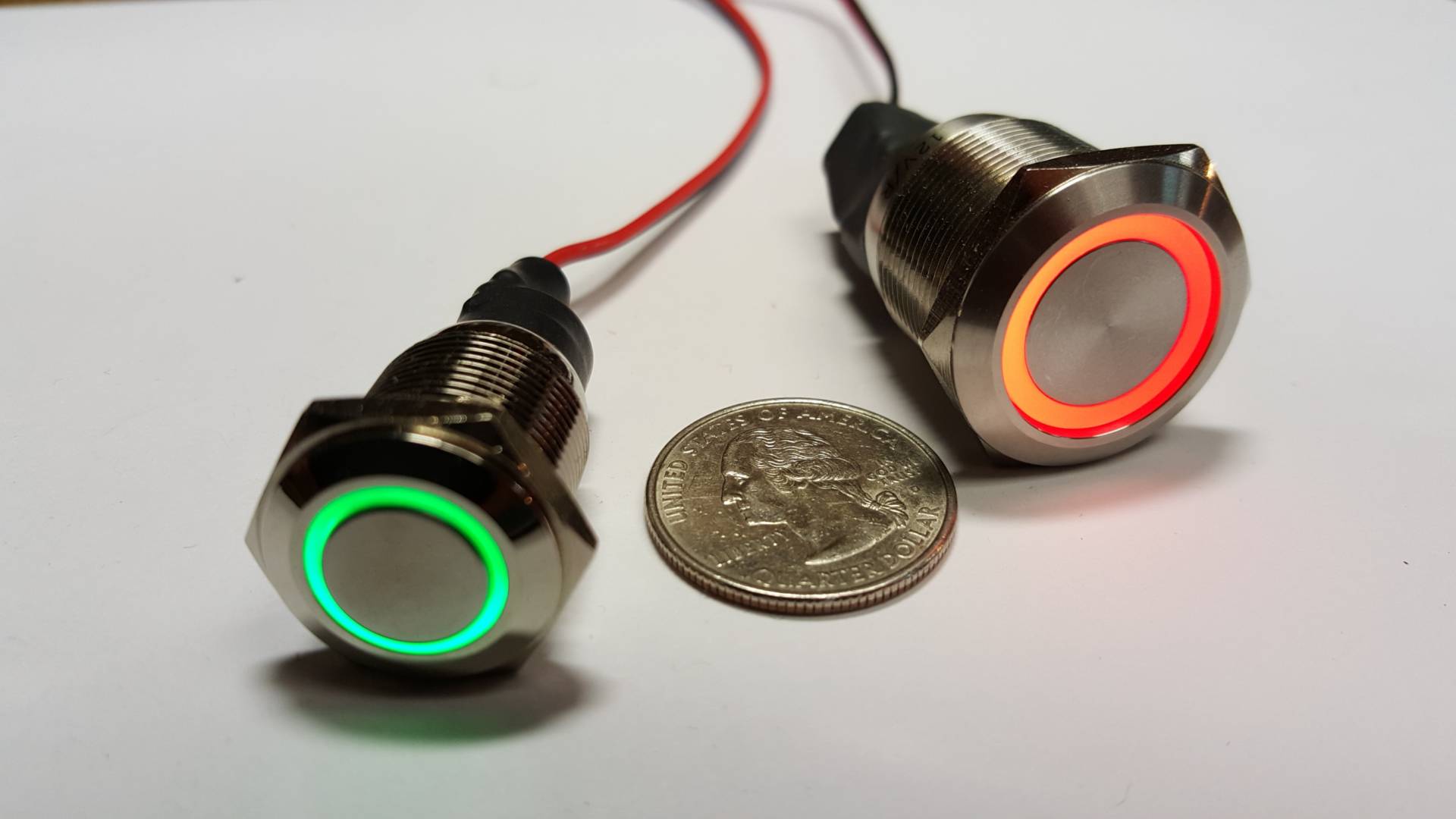

Illuminated Push Button Switches (L75-22) These gorgeous low profile switches may be used for a variety of Momentary or ON/Off (latching) switch functions. The LED illumination ring is separately controlled so it can be used as a circuit power indicator or as a locator light that is powered by the vehicle lights. They can be positive ( ) or ground (-) switching. These switches are available in either Momentary or On/Off (Latching) style switches. All switches are available in Blue, Green, Red or White LED illumination. The switches are available in either a Chrome or Black finish. And, they’re available in either a Small or Large size (see below for description). The Small switch mounts in a .625 inch (5/8” / 16MM) diameter hole and rated at 3 amps maximum. The face diameter is ¾”. For jobs that require higher amperage, please take a look at our relays. The Large switch mounts in a .875 inch (7/8” / 22MM) diameter hole and rated at 5 amps maximum. The face diameter is just under 1”. For jobs that require higher amperage, please take a look at our relays. Available in either Momentary or On/Off functions! Engraving is available upon request. SKU: N/A Category: Automotive Switches and Buttons Tags: billet, Large
